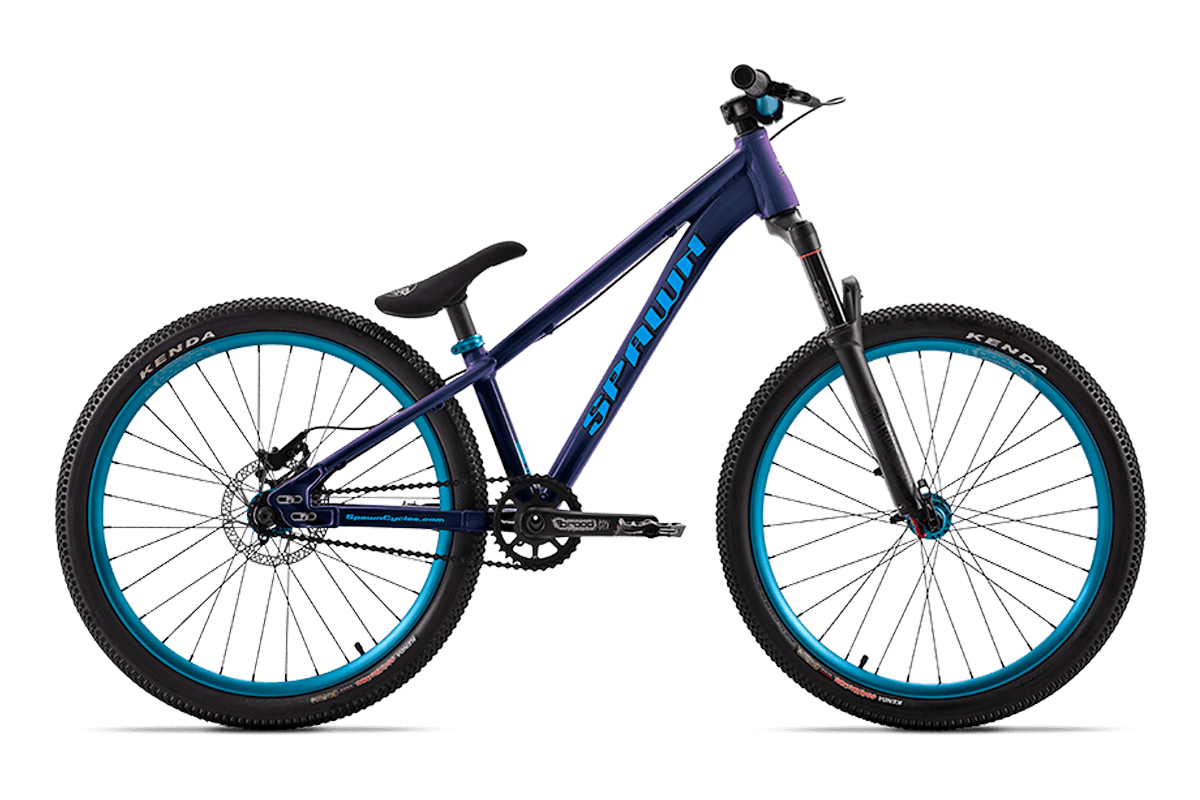

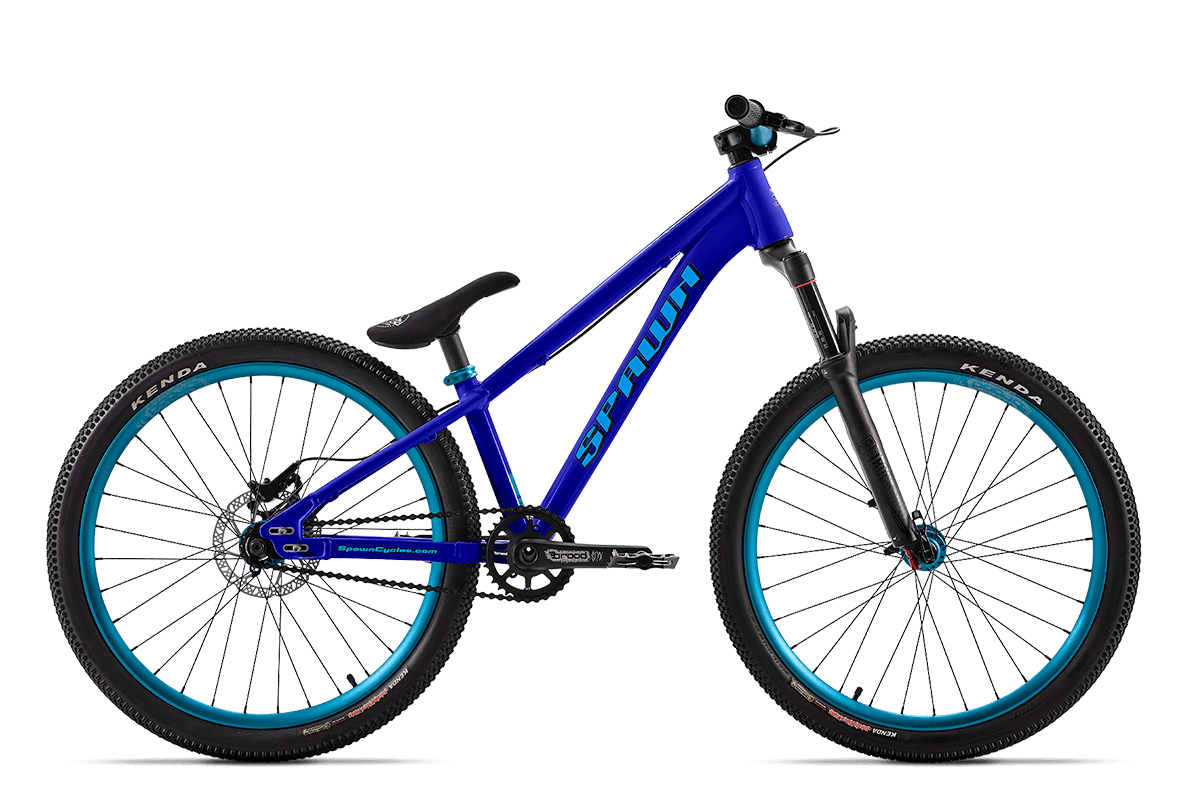

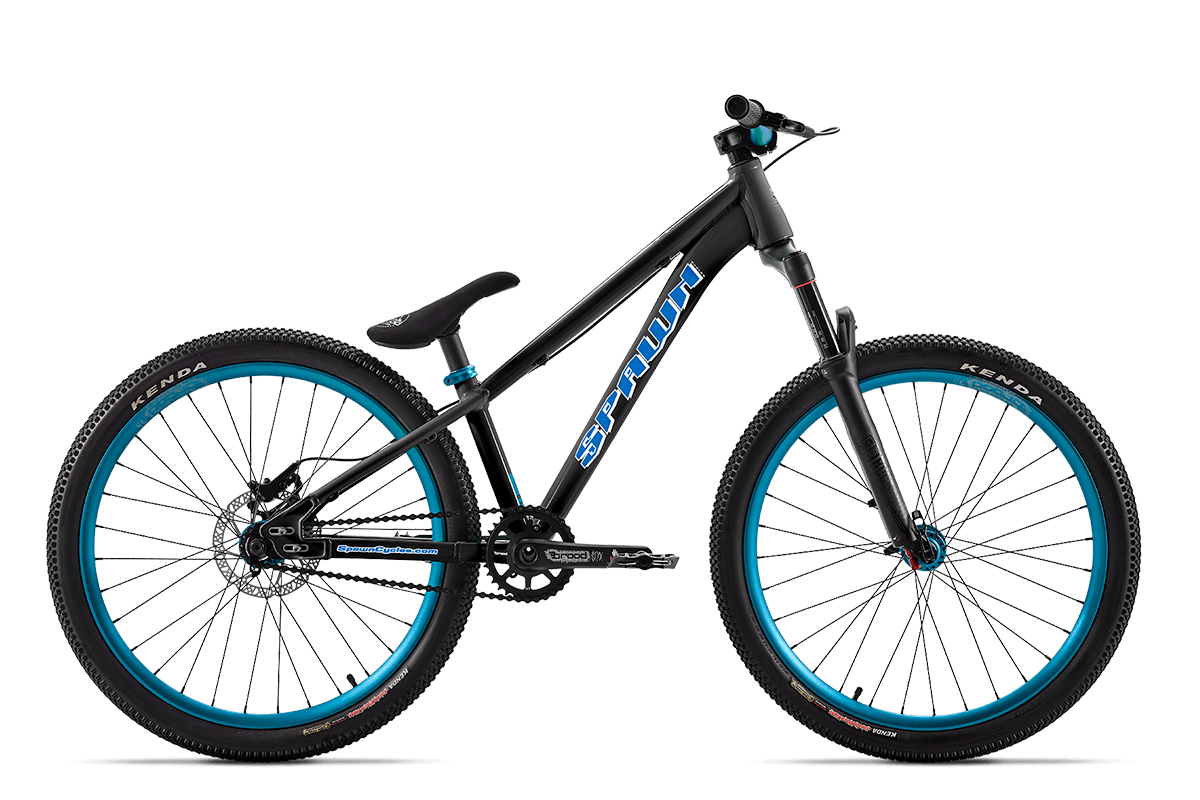

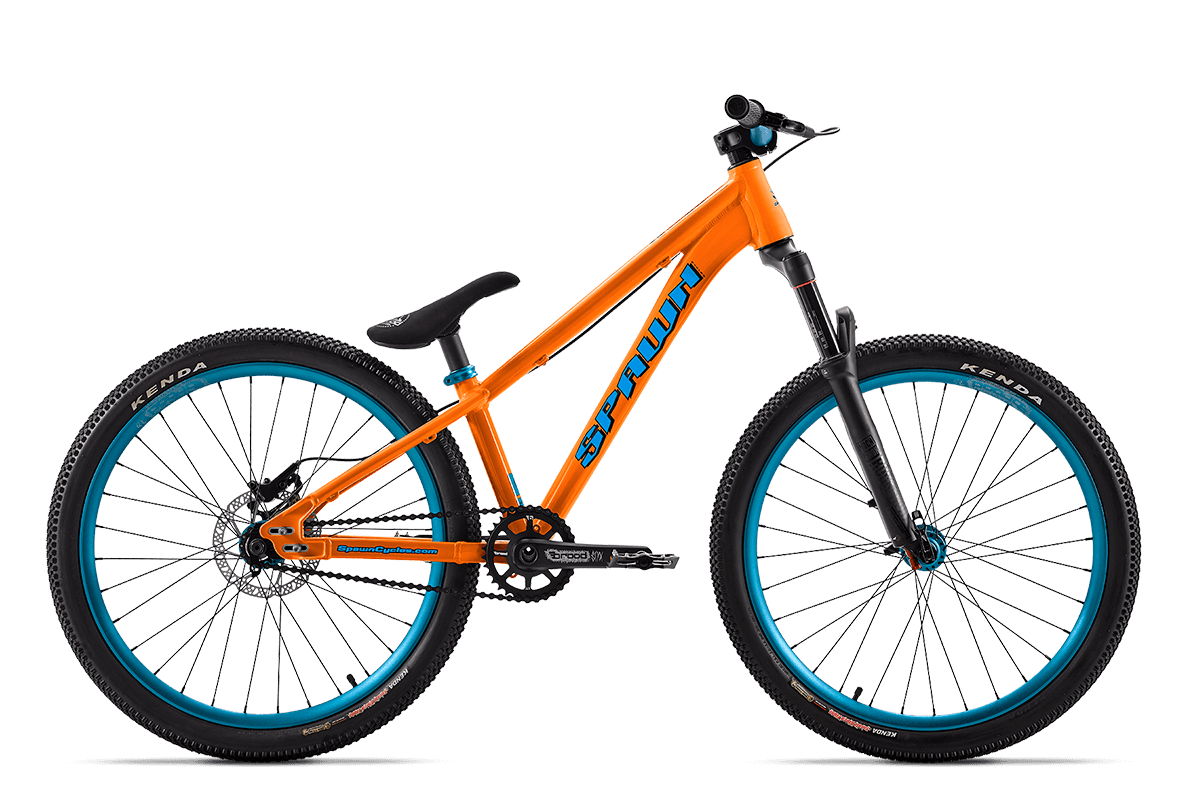

Kotori 24"
24" dirt jump bike for 8-12 years old. Purpose-built for dirt jumps and pump tracks.
The Kotori 24” starts with A burly 6061 T6 alloy frame with a hydroformed downtube, ISCG-05 chainguard tabs and sliding, bolt-on sliding rear dropouts and a 26” 100mm Rock Shox Reba fork with 32mm stanchions.
We rounded out the package wtih Brood Bike Co.'s new A Bar Named Sue handlebars, a Tektro hydraulic disc brake out back, Brood Tenderiderz grips, the new Brood Throne pivotal saddle, sealed bearings everywhere and Brood’s new Styx 2 piece through-axle direct mount cranks and chainwheel.
What can you do with a Kotori? Check it out here!
What's involved in assembly? Walk through it with Fraser here!

Specs
Spawn Cycles 6061 T6 Alloy
Rock Shox Reba 100mm travel, rebound
Brood Bike Co. Direct Mount 32t
External, sealed cartridge bearing
14t cog and spacers
Taya, black
Tektro Auriga hydraulic disc, 160mm
Tektro Auriga
Brood Bike Co. A Bar Named Sue 720 mm wide, 25 mm rise
Brood Bike Co. Tenderiderz 120mm
Spawn Cycles alloy, 40 mm
100x15mm alloy, sealed, quick release
135 mm alloy, sealed, bolt on
Alloy, 32h
Kenda Small Block Eight 24″ x 2.10″
Semi-integrated, sealed
Brood Bike Co. Throne Pivotal
Pivotal Alloy, 180 mm
Spawn Cycles
Wellgo alloy
Geometry
275 mm
68.5 degrees
70 degrees
515 mm
120 mm
460 mm
